Engineered Component Shipping Rack for Maximum Efficiency
Transporting large, fragile components requires more than basic material handling solutions. Without proper support and spacing, manufacturers face product damage, inefficient loading, and unnecessary freight costs.
To solve this, Plymouth Industries designed and fabricated a custom component shipping rack for a leading manufacturer in the specialty vehicle industry. This engineered returnable shipping rack improves product protection, increases shipping density, and streamlines handling from production to delivery.
The Challenge: Shipping Fragile Component Safely
Fragile components present several logistics challenges:
- High risk of scratching and surface damage during transport
- Inconsistent stacking leading to instability
- Poor trailer utilization and high freight costs
- Inefficient handling between production, storage, and shipping
Standard pallets and generic racks simply do not provide the control or protection required for these sensitive components.
The Solution: Engineered Custom Shipping Rack

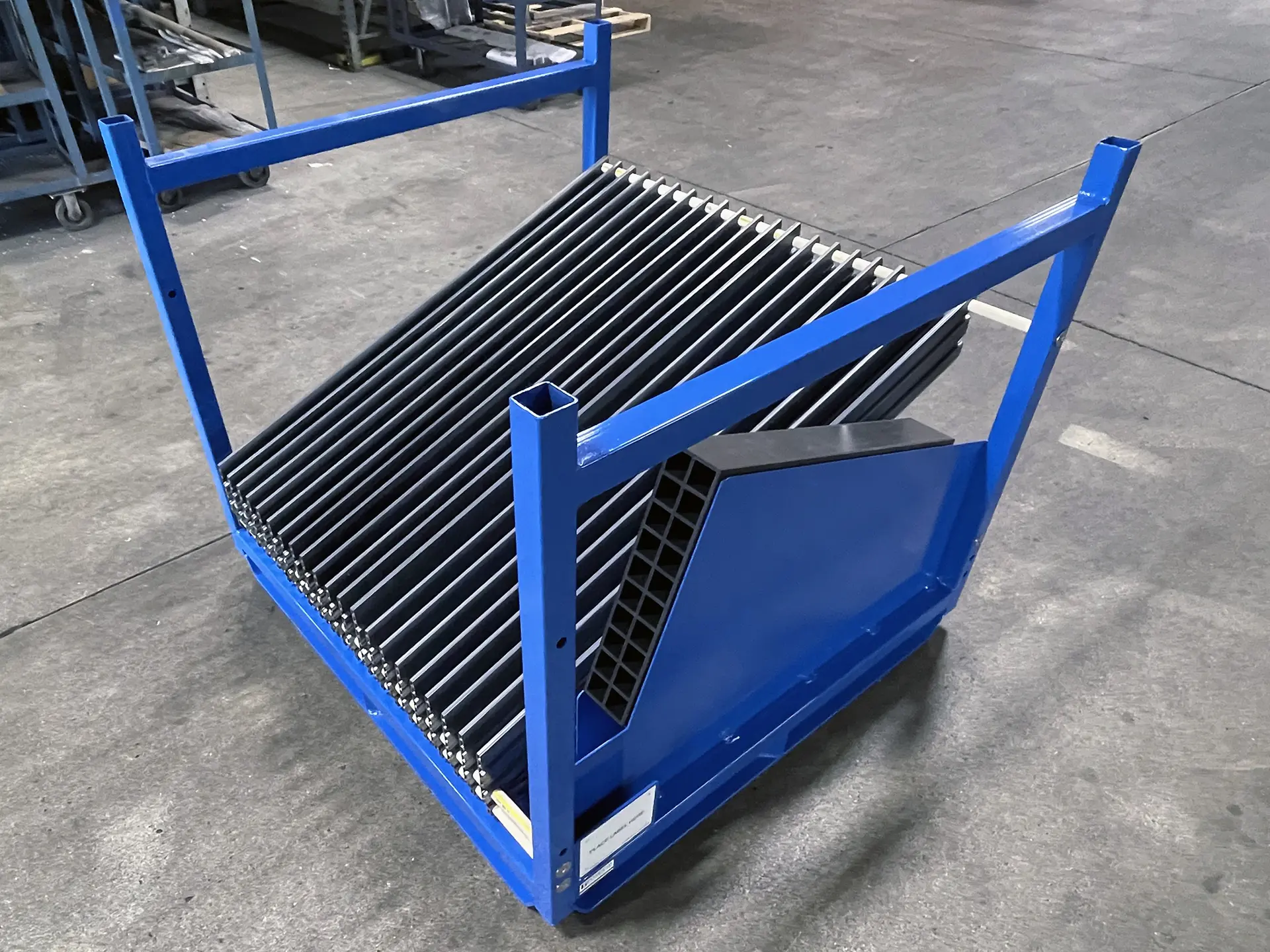

Plymouth Industries developed a custom steel shipping rack system tailored to the exact dimensions, quantity, and handling requirements of the vulnerable components and associated parts.
With full in-house engineering, prototyping, and fabrication capabilities, each rack is designed from the ground up to maximize payload, protect parts, and integrate seamlessly into existing material handling workflows.
Key Design Features
The finalized rack design incorporates performance-driven features that directly impact shipping efficiency and product protection:

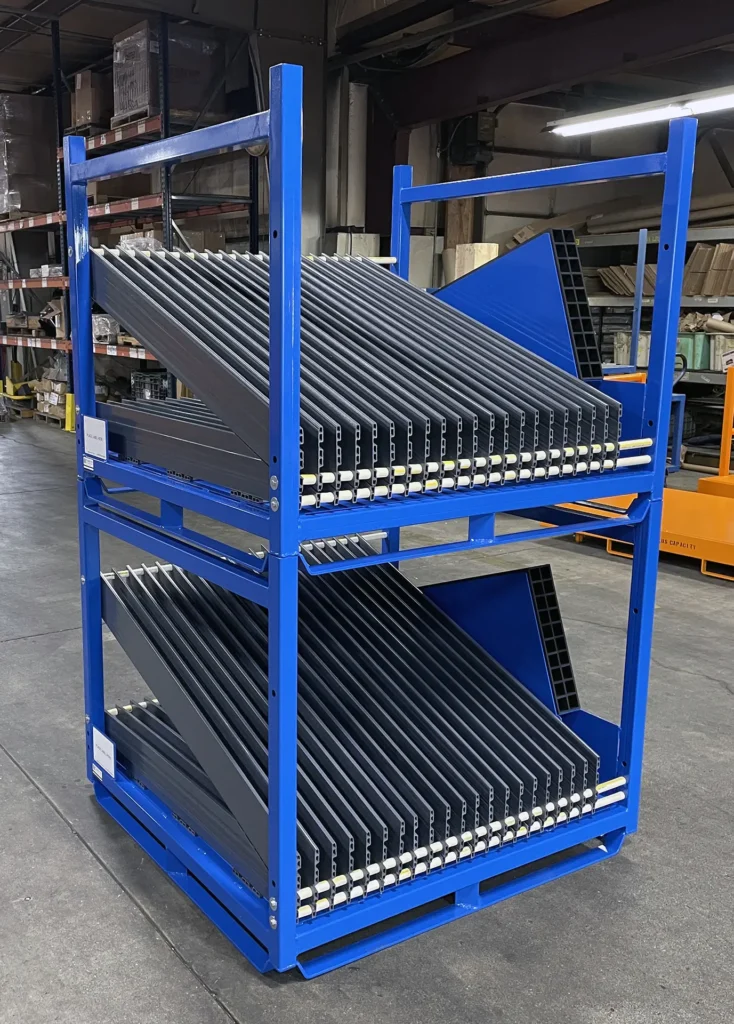

High-Density Shipping Configuration
- Optimized stacking
- Maximizes trailer utilization and reduces cost per shipped unit

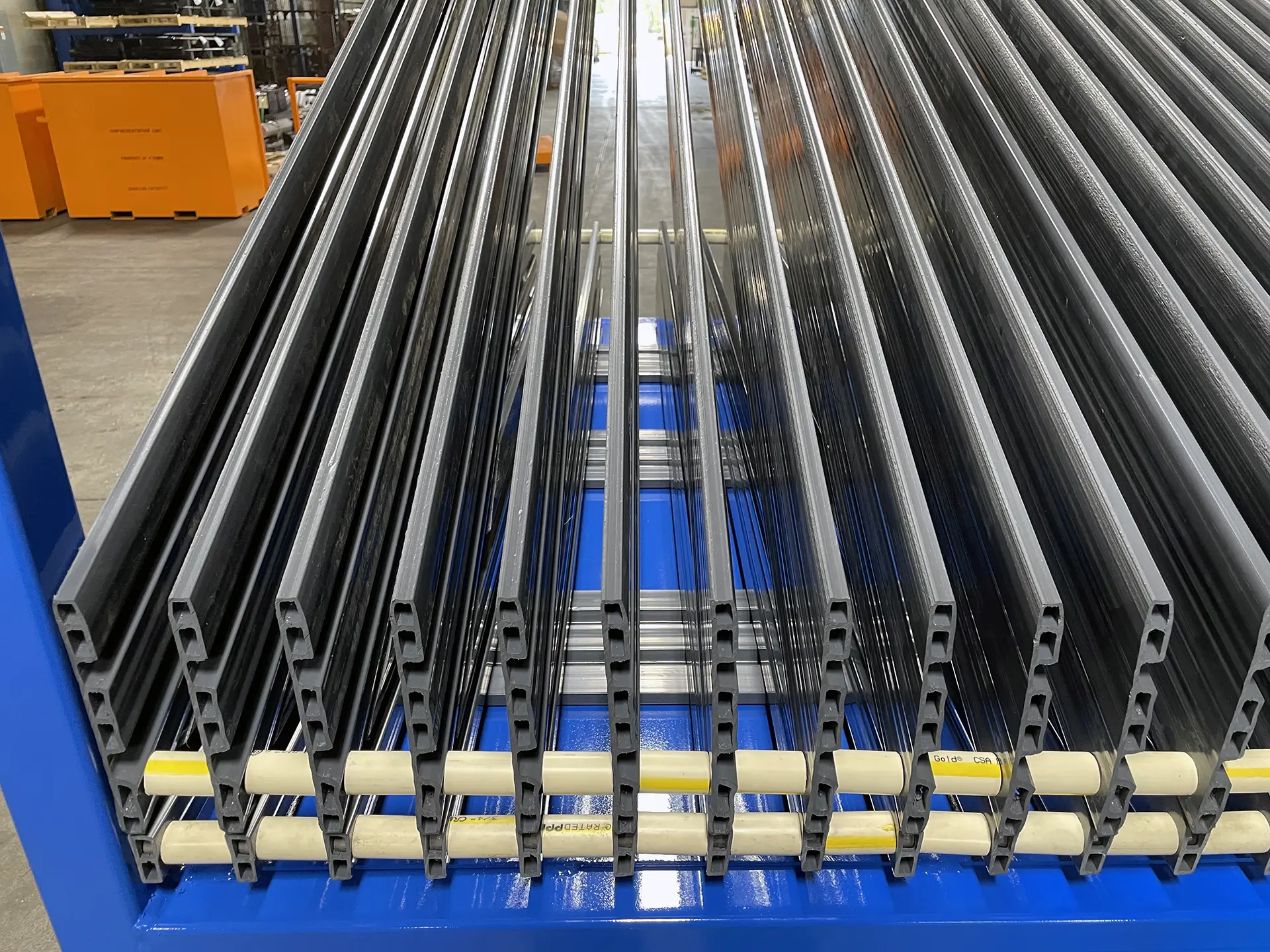

Precision Divider System for Protection
- Divider spacing ensures consistent separation
- Prevents metal-to-metal contact and surface damage
- Maintains alignment during transport and handling

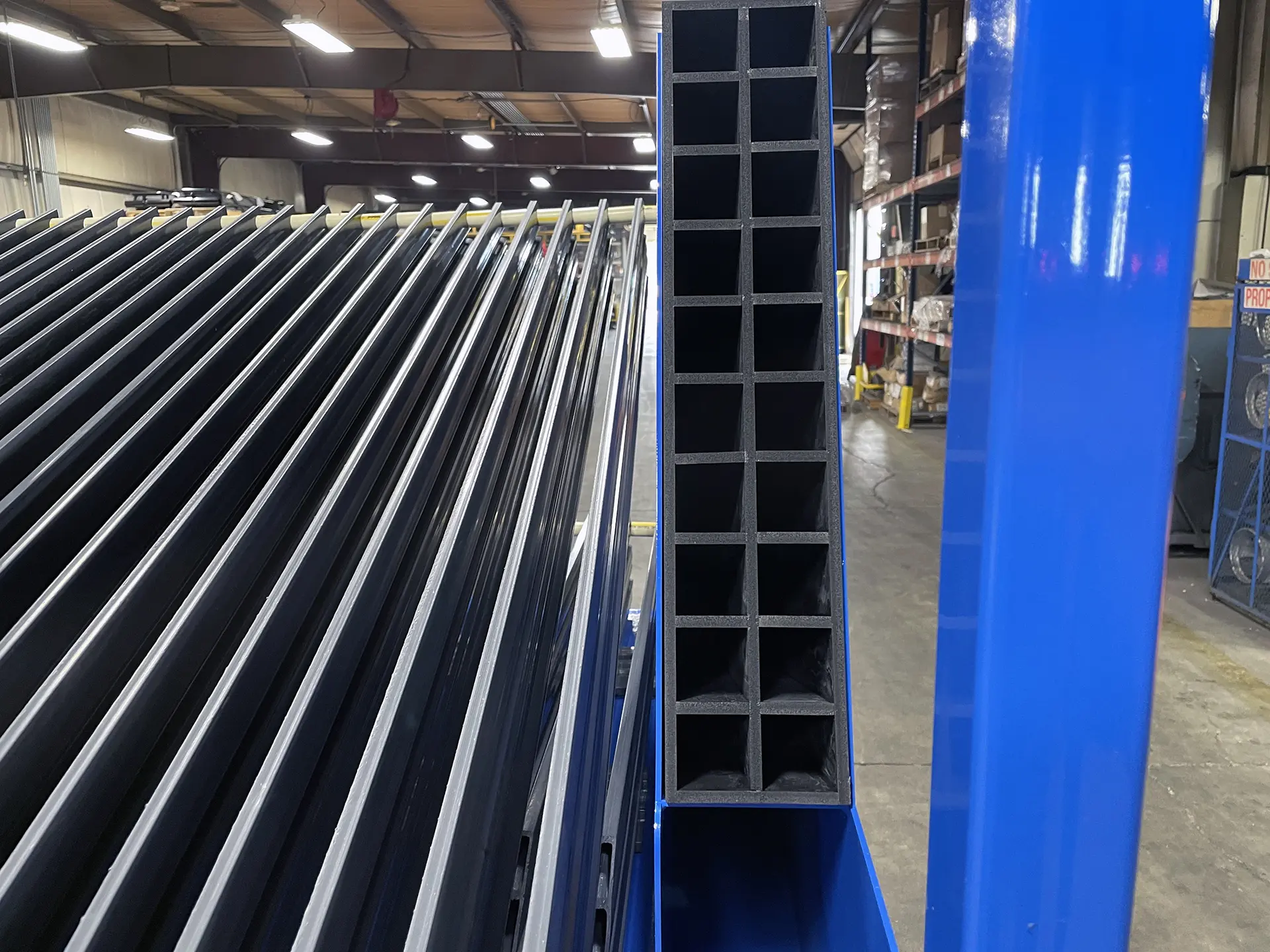

Integrated Component Storage
- Built-in cubie for associated parts
- Keeps components organized and secured within the same rack
- Eliminates separate packaging and reduces handling time
Durable, Transport-Ready Construction
- Heavy-duty welded steel frame
- Designed to withstand repeated shipping cycles and harsh handling conditions
Handling & Logistics Efficiency
- 4-way forklift access for flexible loading and unloading
- Dual placards for easy identification and tracking
- Compact footprint optimized for truck loading patterns
These features align with best practices for custom shipping racks, including payload maximization, part protection, and repeatable handling performance.
Results: Reduced Freight Costs and Improved Protection
By implementing a purpose-built component shipping rack, the manufacturer achieved significant operational improvements:
- Reduced Product Damage: Controlled spacing and secure dunnage eliminated scratches and deformation
- Lower Freight Costs: Increased parts per truck improved cost efficiency
- Faster Loading & Unloading: Standardized rack design streamlined logistics
- Improved Organization: Integrated storage for frames and extrusions reduced complexity
- Long-Term Cost Savings: Durable, reusable racks replaced disposable packaging
Custom returnable racks are proven to outperform one-way packaging by improving durability, sustainability, and total cost of ownership.
Why Custom Shipping Racks Deliver Better ROI
Unlike off-the-shelf solutions, custom shipping racks are engineered around your product and supply chain requirements. This delivers:
- Superior product protection during transport
- Higher shipping density and reduced freight spend
- Improved handling efficiency across facilities
- Reduced reliance on disposable packaging
- Long-term durability and reusability
Plymouth Industries specializes in custom racks and material handling solutions that solve logistics challenges with engineered precision.
Applications Across Industries
This type of custom shipping rack system is ideal for:
- Specialty vehicle and transportation manufacturing
- Window and door fabrication
- Automotive and Tier suppliers
- Industrial components and assemblies
- Any application requiring safe transport of fragile or high-value parts
